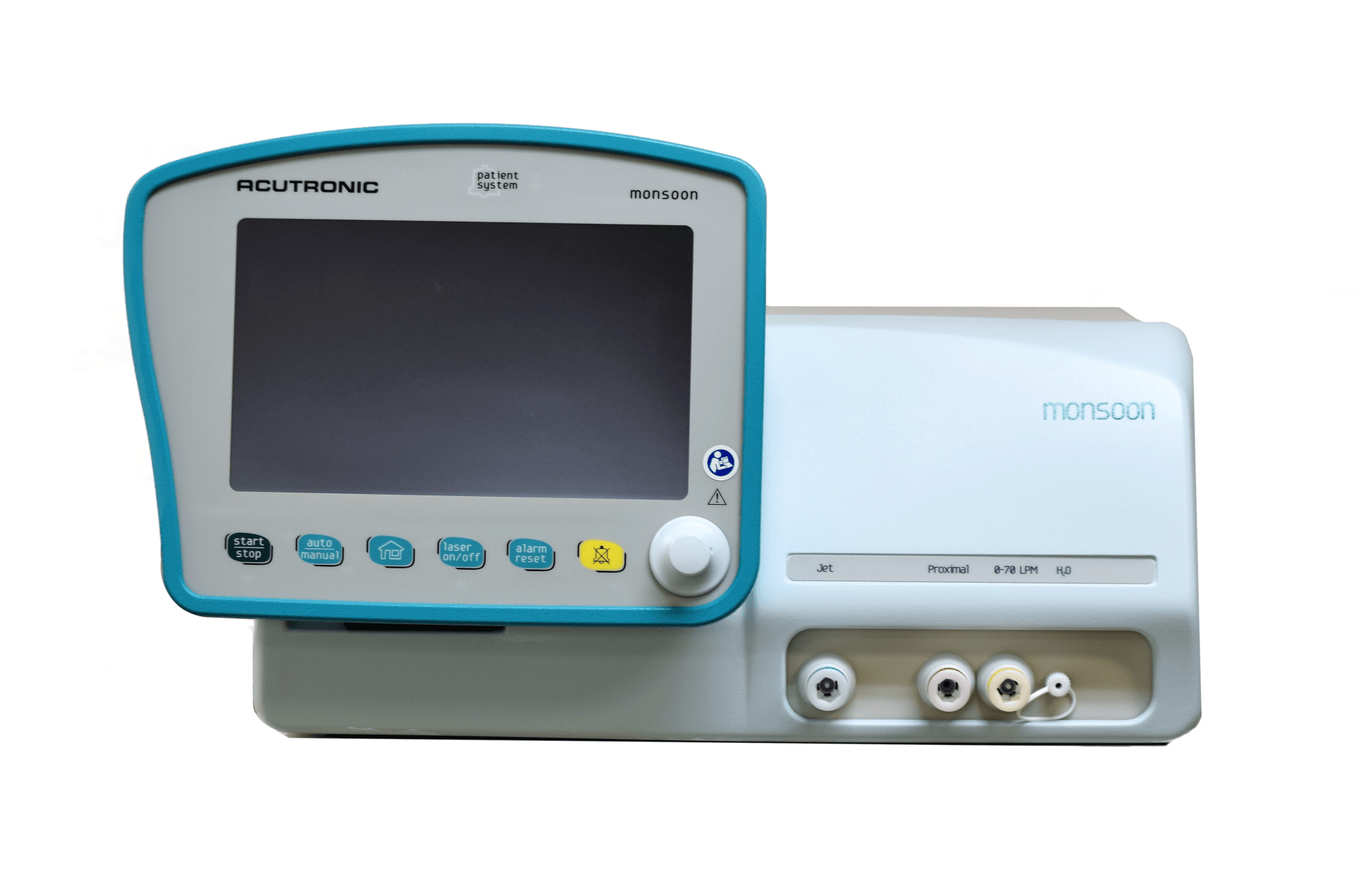

Acutronic Monsoon III

Jet Ventilator

The Most Advanced Technology from Acutronic

Susquehanna Micro is proud to be the only North American dealer for Acutronic Jet Ventilators. We are a licensed sales and service facility for the Acutronic Monsoon III Jet Ventilator, as well as the NEW Monsoon IV Jet Ventilator - COMING SOON in 2025.

Product Details

The Monsoon III High Frequency Jet Ventilator replaces the Mistral High Frequency Jet Ventilator and Monsoon II High Frequency Jet Ventilator, it is Acutronic Medical's next step in bringing new innovative products to the ever changing surgical field. The jet ventilator features an integrated humidification and heating system for jet gas. Humidification is automatically adjusted according to the actual minute volume delivered to each patient. This unit also includes a detachable 9" screen so that the Anesthesiologist is able to move them selves away from the confined space around the surgical procedure. The GUI is color touch screen.

Applications

The Monsoon III Jet Ventilator is suitable for all procedures in the Electrophysiology lab / Cathlab, ENT surgery, Thoracic surgery, Heart surgery, Neurosurgery as well as for applications in intensive care for patients with severe lung injury, ARDS or Bronchopleural fistulas. Due to the Monsoon III's unique humidification and heating system, there is no limitation in application duration as with other systems. The Monsoon High Frequency Jet Ventilator can be used in combination with a conventional ventilator, thus extending the area of applications.
Acutronic Monsoon III Jet Ventilator in Doctor's Hand | Medical Device Sales + Service

XL Display Screen

Large 9" detachable Touch Screen display showing patient parameters, graphical wave form, pressure levels and limits.
Acutronic Monsoon III Jet Ventilator in Doctor's Hand | Medical Device Sales + Service

Safe & Reliable

Improved safety and reliability with microprocessor control.
Acutronic Monsoon III Jet Ventilator in Doctor's Hand | Medical Device Sales + Service

Innovative Technology

Adjustable bypass flow allows pre-oxygenation of patients before surgery and auxiliary ventilation.

Request a Quote

Call: 888-730-5463

FEATURES

  • Standard one year warranty (optional two year warranty at additional cost)
  • Large 9" detachable Touch Screen display showing patient parameters, graphical wave form, pressure levels and limits
  • Delivered Tidal Volume and Minute Volume Displayed
  • Adjustable bypass flow allows pre-oxygenation of patients before surgery and auxiliary ventilation
  • Improved safety and reliability with microprocessor control
  • PIP & PP alarm limit / high pressure cutoff
  • MAP, EEP, PIP, PP pressure monitoring displayed on screen for easy viewing
Product ID
  • Part Number: ACU-7700 (with Heated Humdification System)
  • Part Number: ACU-7710 (without Heated Humidification System)
*Note the ACU-7710 is no longer available within the USA

Displayed & Measured Settings:
  • Frequency
  • Inspiratory Time
  • Pause Pressure
  • Driving Pressure
  • FiO2
  • TV / MV
  • PIP / MAP / EEP
  • Humidification
  • Bypass Flow Rate

For parts and accessories, click here.

SPECIFICATIONS

Dimensions:
  • W x H x D - 42cm x 39cm x 19cm
  • Weight: 14kg
Alarms:
  • Pause Pressure (PP)
  • Peak Pressure (PIP)
  • OFF - 101 cmH2O
  • 1 - 101 cmH2O
System Alarms:
  • Power failure if electrical power drops below 95 VAC
  • System failure if microprocessor fails
  • Gas supply failure if air/oxygen supply fails
  • FiO2 if oxygen concentration changes 5% above or below set value
  • Add water if water supply fails
Set Parameters:
  • Frequency: 12 - 150 CPM
  • Inspiratory Time: 20 - 60%
  • Fio2:  21 - 100% Oxygen
  • Driving Pressure: 5 - 40 PSI
  • Auxiliary Gas Flow: 0 - 70 lpm
  • Humidification: 0 - 100%
Connections:
  • Air Supply: 21% Medical Grade Air 40 - 90 PSI
  • Oxygen Supply: 100% Medical Grade  40 - 90 PSI
  • Power Supply: 100 -120 VAC
  • Power Consumption: 100 W
  • Type: Universal High Frequency Jet Ventilator
