Dimensions
Size: 7in x 3.8in x 13in
Weight: 5.3 lbs
Power Requirements
Power Consumption: 140 Watts
Electrical Requirements: 115 VAC, 60 Hz, 2.5 A
Electrical Approval: UL (2, D) CSA (C)
Ratings
Model: 4650 (2, D & C)
Compressor Type: Piston
Max. Comp Pressure: 35 psig or greater*
Free Air Flow (lpm): 8 lpm or greater*
Neb. Operating Pressure: 11 to 16 psi*
Sound Level: 53 dBa
Warranty: 5-year (manufacturer)

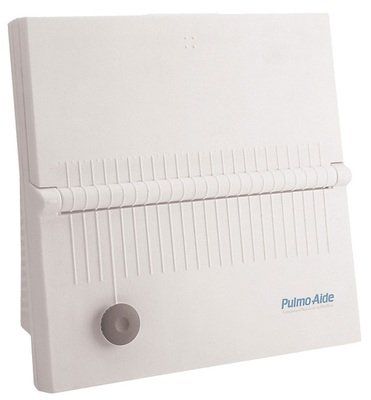

The Pulmo-Aide Compact 3655D is the perfect solution for those patients seeking quality respiratory treatment from a compressor/nebulizer with a portable design.
Dimensions
Size: 7.5in x 4.0in x 7.2in
Weight: 4.8 lbs.
Power Requirements
Power Consumption: 140 Watts
Electrical Requirements: 115 VAC, 60 Hz, 2.5 A
Electrical Approval: Entela certified to UL, CSA, IEC standards
Warranty: 5-years limited (manufacturer)
Dimensions
Size: 10.1in x 10.5in x 6.5in
Weight: 7.1 lbs.
Power Requirements
Power Consumption: 90 Watts
Electrical Requirements: 115 VAC, 60 Hz, 1.3 A
Electrical Approval: UL (D & H), CSA (C)
Ratings
Warranty: 5-year (manufacturer)

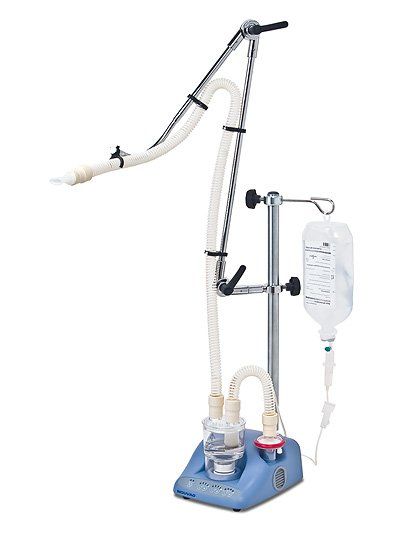

Nebulizer performance, adjustable: 0 - 180 ml/hr
Particle size: 0.5 - 5 µm Air flow, adjustable: 0 - 201/min
Ulrasonic frequency: 1.68 MHz Input Voltage: 110V/127V/230V/50 - 60Hz
Power Consumption (max): 110VA
Dimensions(w x d x h): 8.07in x 12.40in x 7.48in Weight: 7.7lbs
Click here to download the complete brochure.
- Easy to Use: Built-in Flow Gauge eliminates need for pressure/flow calculations, caregiver can set airflow in LPM by simply dialing
- Aids Compliance: JCAHO Compliant Built-in Hour Meter determines when Preventative Maintenance is due
- Easy to Maintain: Compressor Filters on outside of cabinet make filter-cleaning easier for patients and caregivers
- Durable: ABS plastic cabinet is durable, attractive, easy-to-clean and infection control friendly
- Safe: Safety is assured with Class B Thermal Limit, Automatic Reset which prevents unit from overheating
We specialize in High Frequency Jet Ventilators, Pulmonary Function Testing Equipment and Metabolic Testing Equipment. Susquehanna Micro Inc. is an official North American Licensed Dealer for the Acutronic Monsoon IIIJet Ventilator.
