FLOWMETERS

Flowmeters from Precision Medical

Precision Medical manufactures hospital standard flowmeters of the highest quality, and provides an array of adapters for Ohmeda, Chemetron, Oxyequip, Puritan-Bennett, Schrader and other systems. We carry a variety of Precision Medical flowmeters for all of your medical needs including:
  • Chrome Body Flowmeters
     Chrome flowmeters offer durability and accuracy with the use black glass flow indicator balls. Their exceptional sphericity and uniform weight contribute to a more accurate flowmeter than those using plastic floats.
  • Dial Flowmeters
    The Dial Flowmeter provides a new solution to an old problem: the durable metal body lacks a flow tube, thus preventing the breakage associated with standard glass flowmeters.
  • Pediatric Flowmeters
    Pediatric flowmeters provide extreme accuracy when it counts and are available in three different models. With the glance of an eye, the stork label quickly identifies the low-flow flowmeter, preventing accidental use of the wrong flowmeter in neonatal application.
REQUEST A QUOTE

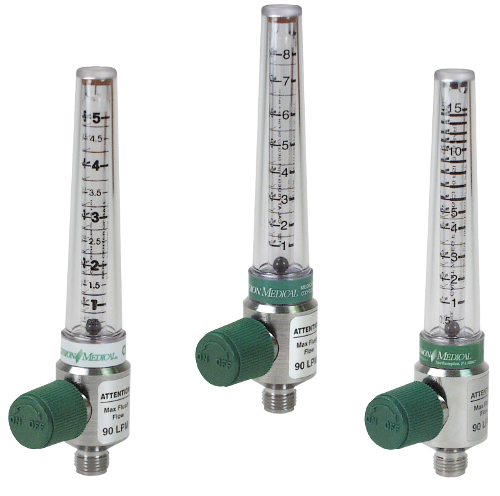

Chrome Body Flowmeters


They're durable

The polycarbonate housings are extremely durable. They are impervious to chemical solutions normally used in a clinical setting preventing clouding and spidering. The polycarbonate flow tubes ensure durability.

They're easy to use

The flow control knob is on the front of the flowmeter in clear sight, unlike side mount knobs which are susceptible to damage And our black glass float makes the flow setting easy to read.

They're accurate

Our flowmeters use black glass flow indicator balls. Their exceptional sphericity and uniform weight contribute to a more accurate flowmeter than those using plastic floats.

They're dependable

The housings and flow tubes carry a lifetime warranty and the needle valves carry a five-year warranty.

The Chrome Body Flowmeter is available in six models:

  • 3501 Series: 0xygen 0-5 LPM

    Model 0 to 5 lpm


    Gas:  Oxygen

    Scale:  0 to 5 lpm

    Increments:  .25 lpm (starts at .5 lpm)

    Accuracy:  ±.20 lpm

    Maximum Flush Flow:  70 lpm


  • 4001 Series: Oxygen 0-8 LPM

    Model 0 to 8 lpm


    Gas:  Oxygen

    Scale:  0 to 8 lpm with Flush

    Increments:  .5 lpm (starts at 1 lpm)

    Accuracy:  ±.25 lpm

    Maximum Flush Flow:  70 lpm

  • 1001 Series: Oxygen 0-15 LPM

    Model 0-15 lpm


    Gas:  Oxygen

    Scale:  0 to 15 lpm with Flush

    Increments:  .5 lpm from .5 to 5 lpm; 1 lpm from 5 to 15 lpm

    Accuracy:  ±.25 lpm from .5 to 5 lpm; ±.5 lpm above 6 to 15 lpm

    Maximum Flush Flow:  70 lpm

  • 2001 Series: Air 0-15 LPM

    Model 0 to 15 lpm


    Gas:  Air

    Scale:  0 to 15 lpm with Flush

    Increments:  .5 lpm from .5 to 5 lpm; 1 lpm from 5 to 15 lpm

    Accuracy:  ±.25 lpm from .5 to 5 lpm; ±.5 lpm above 6 to 15 lpm

    Maximum Flush Flow:  70 lpm

  • 8001 Series: Oxygen 0-70 LPM

    Model 0 to 70 lpm


    Gas:  Oxygen

    Scale:  0 to 70 lpm with Flush

    Increments:  5 lpm (starts at 10 lpm)

    Accuracy:  ±3 lpm

    Maximum Flush Flow:  100 lpm

  • 9001 Series: Air 0-70 LPM

    Model 0 to 70 lpm


    Gas:  Air

    Scale:  0 to 70 lpm with Flush

    Increments:  5 lpm (starts at 10 lpm)

    Accuracy:  ±3 lpm

    Maximum Flush Flow:  100 lpm


    No Adaptor:

    Oxygen 0-5 lpm:  1MFA3501

    Oxygen 0-8 lpm:  1MFA4001

    Oxygen 0-15 lpm:  1MFA1001

    Air 0-15 lpm:  1MFA2001

    Oxygen 0-70 lpm:  1MFA8001

    Air 0-70 lpm:  1MFA9001

  • Adapters

    DISS Female Hex Nut:

    Oxygen 0-5 lpm:  1MFA3502

    Oxygen 0-8 lpm:  1MFA4002

    Oxygen 0-15 lpm:  1MFA1002

    Air 0-15 lpm:  1MFA2002

    Oxygen 0-70 lpm:  1MFA8002

    Air 0-70 lpm:  1MFA9002


    DISS Female Hand Tight:

    Oxygen 0-5 lpm:  1MFA3503

    Oxygen 0-8 lpm:  1MFA4003

    Oxygen 0-15 lpm:  1MFA1003

    Air 0-15 lpm:  1MFA2003

    Oxygen 0-70 lpm:  1MFA8003

    Air 0-70 lpm:  1MFA9003


    DISS Male:

    Oxygen 0-5 lpm:  1MFA3504

    Oxygen 0-8 lpm:  1MFA4004

    Oxygen 0-15 lpm:  1MFA1004

    Air 0-15 lpm:  1MFA2004

    Oxygen 0-70 lpm:  1MFA8004

    Air 0-70 lpm:  1MFA9004


    Ohmeda:

    Oxygen 0-5 lpm:  1MFA3505

    Oxygen 0-8 lpm:  1MFA4005

    Oxygen 0-15 lpm:  1MFA1005

    Air 0-15 lpm:  1MFA2005

    Oxygen 0-70 lpm:  1MFA8005

    Air 0-70 lpm:  1MFA9005


    Chemetron:

    Oxygen 0-5 lpm:  1MFA3506

    Oxygen 0-8 lpm:  1MFA4006

    Oxygen 0-15 lpm:  1MFA1006

    Air 0-15 lpm:  1MFA2006

    Oxygen 0-70 lpm:  1MFA8006

    Air 0-70 lpm:  1MFA9006


    Oxequip:

    Oxygen 0-5 lpm:  1MFA3507

    Oxygen 0-8 lpm:  1MFA4007

    Oxygen 0-15 lpm:  1MFA1007

    Air 0-15 lpm:  1MFA2007

    Oxygen 0-70 lpm:  1MFA8007

    Air 0-70 lpm:  1MFA9007


    Puritan-Bennett:

    Oxygen 0-5 lpm:  1MFA3508

    Oxygen 0-8 lpm:  1MFA4008

    Oxygen 0-15 lpm:  1MFA1008

    Air 0-15 lpm:  1MFA2008

    Oxygen 0-70 lpm:  1MFA8008

    Air 0-70 lpm:  1MFA9008


    Schrader:

    Oxygen 0-5 lpm:  1MFA3509

    Oxygen 0-8 lpm:  1MFA4009

    Oxygen 0-15 lpm:  1MFA1009

    Air 0-15 lpm:  1MFA2009

    Oxygen 0-70 lpm:  1MFA8009

    Air 0-70 lpm:  1MFA9009

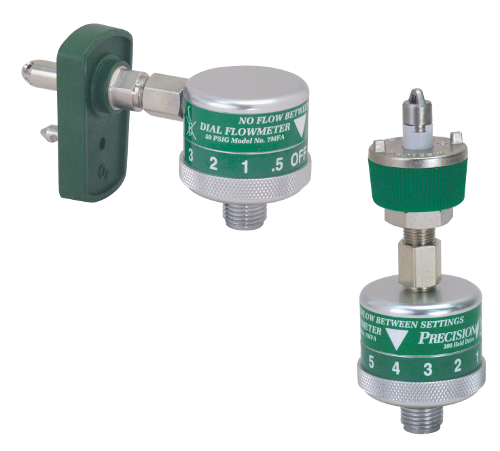

Dial Flowmeters


The Dial Flowmeter provides a new solution to an old problem: the durable metal body lacks a flow tube, thus preventing the breakage associated with standard glass flowmeters.

Features include:
  • Lack of a flow tube, durable metal body prevents breakage
  • Compact size enables unit to fit into tight areas, makes it virtually damage proof
  • Accuracy is assured without need for the visible floats in thorpe tube flowmeters
  • Large easy-to-read numbers and Knurled Flow adjustment knob makes adjustments easy
  • Versatility: Comes with two different Flow Ranges (.5-15 with Flush or 1-25 LPM)
  • Both Oxygen and Air models are available

The Dial Flowmeter is available in four models:

  • 1001 Series: Oxygen 0-15 LPM

    PM-7MFA1001 Series: Oxygen 0-15 LPM


    Flow Range: 0 to 15 lpm


    Position Increments (lpm):  Off, .5, 1, 2, 3 ,4 ,5, 6, 8, 10, 15, Flush

    No Flow Between Settings


    Flow Range: 0 to 25 lpm


    Position Increments (lpm):  Off, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25

    No Flow Between Settings


    No Adaptor:


    Oxygen 0-15 lpm:  7MFA1001

    Air 0-15 lpm:  7MFA2001

    Oxygen 0-25 lpm:  7MFA1101

    Air 0-25 lpm:  7MFA2101


  • 2001 Series: Air 0-15 LPM

    PM-7MFA2001 Series: Air 0-15 LPM


    Flow Range: 0 to 15 lpm


    Position Increments (lpm):  Off, .5, 1, 2, 3 ,4 ,5, 6, 8, 10, 15, Flush

    No Flow Between Settings


    Flow Range: 0 to 25 lpm


    Position Increments (lpm):  Off, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25

    No Flow Between Settings


    No Adaptor:


    Oxygen 0-15 lpm:  7MFA1001

    Air 0-15 lpm:  7MFA2001

    Oxygen 0-25 lpm:  7MFA1101

    Air 0-25 lpm:  7MFA2101

  • 1101 Series: Oxygen 0-25 LPM

    PM-7MFA1101 Series: Oxygen 0-25 LPM


    Flow Range: 0 to 15 lpm


    Position Increments (lpm):  Off, .5, 1, 2, 3 ,4 ,5, 6, 8, 10, 15, Flush

    No Flow Between Settings


    Flow Range: 0 to 25 lpm


    Position Increments (lpm):  Off, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25

    No Flow Between Settings


    No Adaptor:


    Oxygen 0-15 lpm:  7MFA1001

    Air 0-15 lpm:  7MFA2001

    Oxygen 0-25 lpm:  7MFA1101

    Air 0-25 lpm:  7MFA2101Model 0 to 70 lpm


    Gas:  Air

    Scale:  0 to 70 lpm with Flush

    Increments:  5 lpm (starts at 10 lpm)

    Accuracy:  ±3 lpm

    Maximum Flush Flow:  100 lpm


    No Adaptor:

    Oxygen 0-5 lpm:  1MFA3501

    Oxygen 0-8 lpm:  1MFA4001

    Oxygen 0-15 lpm:  1MFA1001

    Air 0-15 lpm:  1MFA2001

    Oxygen 0-70 lpm:  1MFA8001

    Air 0-70 lpm:  1MFA9001

  • 2101 Series: Air 0-25 LPM

    PM-7MFA2101 Series: Air 0-25 LPM


    Flow Range: 0 to 15 lpm


    Position Increments (lpm):  Off, .5, 1, 2, 3 ,4 ,5, 6, 8, 10, 15, Flush

    No Flow Between Settings


    Flow Range: 0 to 25 lpm


    Position Increments (lpm):  Off, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25

    No Flow Between Settings


    No Adaptor:


    Oxygen 0-15 lpm:  7MFA1001

    Air 0-15 lpm:  7MFA2001

    Oxygen 0-25 lpm:  7MFA1101

    Air 0-25 lpm:  7MFA2101Model 0 to 70 lpm


    Gas:  Air

    Scale:  0 to 70 lpm with Flush

    Increments:  5 lpm (starts at 10 lpm)

    Accuracy:  ±3 lpm

    Maximum Flush Flow:  100 lpm


    No Adaptor:

    Oxygen 0-5 lpm:  1MFA3501

    Oxygen 0-8 lpm:  1MFA4001

    Oxygen 0-15 lpm:  1MFA1001

    Air 0-15 lpm:  1MFA2001

    Oxygen 0-70 lpm:  1MFA8001

    Air 0-70 lpm:  1MFA9001

  • Adapters

    DISS Female Hex Nut:

    Oxygen 0-15 lpm:  7MFA1002

    Air 0-15 lpm:  7MFA2002

    Oxygen 0-25 lpm:  7MFA1102

    Air 0-25 lpm:  7MFA2102


    DISS Female Hand Tight:

    Oxygen 0-15 lpm:  7MFA1003

    Air 0-15 lpm:  7MFA2003

    Oxygen 0-25 lpm:  7MFA1103

    Air 0-25 lpm:  7MFA2103


    DISS Male:

    Oxygen 0-15 lpm:  7MFA1004

    Air 0-15 lpm:  7MFA2004

    Oxygen 0-25 lpm:  7MFA1104

    Air 0-25 lpm:  7MFA5104


    Ohmeda:

    Oxygen 0-15 lpm:  7MFA1005

    Air 0-15 lpm:  7MFA2005

    Oxygen 0-25 lpm:  7MFA1105

    Air 0-25 lpm:  7MFA2105


    Chemetron:

    Oxygen 0-15 lpm:  7MFA1006

    Air 0-15 lpm:  7MFA2006

    Oxygen 0-25 lpm:  7MFA1106

    Air 0-25 lpm:  7MFA2106


    Oxequip:

    Oxygen 0-15 lpm:  7MFA1007

    Air 0-15 lpm:  7MFA2007

    Oxygen 0-25 lpm:  7MFA1107

    Air 0-25 lpm:  7MFA2107


    Puritan-Bennett:

    Oxygen 0-15 lpm:  7MFA1008

    Air 0-15 lpm:  7MFA2008

    Oxygen 0-25 lpm:  7MFA1108

    Air 0-25 lpm:  7MFA2108


    Schrader:

    Oxygen 0-15 lpm:  7MFA1009

    Air 0-15 lpm:  7MFA2009

    Oxygen 0-25 lpm:  7MFA1109

    Air 0-25 lpm:  7MFA2109

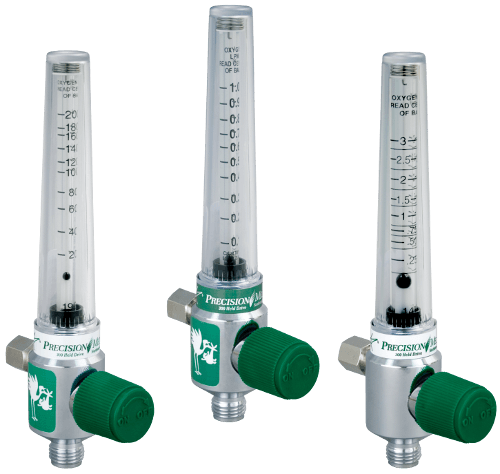

Pediatric Flowmeters


Precision Medical manufactures pediatric flowmeters of the highest quality, and offers an array of adapters for Ohmeda, Chemetron, Oxyequip, Puritan-Bennett, Schrader and other systems. Pediatric flowmeters provide extreme accuracy when it counts.

Features include:
  • Glass Flowtube assures consistent readings and allows high accuracy for precise low flow requirements: (0-200 CC, 0-1 LPM, 0-3 LPM)
  • Stork Safety Label quickly identifies the unit as pediatric, preventing accidental use in neonatal application
  • Shock Protection Spring above the rubber flow tube bushing absorbs shock and prevents breakage
  • Black Glass Float indicator enhances visibility and accuracy
  • Polycarbonate Housing is durable and resists chemical solution spills
  • Front Flow Control knob is in clear sight of operator, less susceptible to damage

The Pediatric Flowmeter is available in three models:

  • 1001 Series: Oxygen 0-200 CC

    PM-6MFA1001 Series: Oxygen 0-200 CC


    Model 6MFA1001


    Gas:  Oxygen

    Flow Range:  0 to 200 cc

    Increments:  20 cc, starts at 20 cc

    Accuracy:

      ± 10 cc from 0 to 100 cc

      ±14 cc from 100 to 200 cc


    No Adaptor:

    Oxygen 0-200 cc:  6MFA1001

    Oxygen 0-1 lpm:  4MFA1001

    Oxygen 0-3 lpm:  1MFA3001

  • 1001 Series: Oxygen 0-1 LPM

    PM-4MFA1001 Series: Oxygen 0-1 LPM


    Model 4MFA1001


    Gas:  Oxygen

    Flow Range:  0 to 1 lpm

    Increments:  .1 lpm, starts at .1 lpm

    Accuracy:  ±.05 lpm


    No Adaptor:

    Oxygen 0-200 cc:  6MFA1001

    Oxygen 0-1 lpm:  4MFA1001

    Oxygen 0-3 lpm:  1MFA3001

  • 3001 Series: Oxygen 0-3 LPM

    PM-1MFA3001 Series: Oxygen 0-3 LPM


    Model 1MFA3001


    Gas:  Oxygen

    Flow Range:  0 to 3 lpm

    Increments:

      .125 lpm from .125 to 1 lpm

      .25 lpm from 1 to 3 lpm

    Accuracy:  ±.15 lpm


    No Adaptor:

    Oxygen 0-200 cc:  6MFA1001

    Oxygen 0-1 lpm:  4MFA1001

    Oxygen 0-3 lpm:  1MFA3001

  • Adapters

    DISS Female Hex Nut:

    Oxygen 0-200 cc:  6MFA1002

    Oxygen 0-1 lpm:  4MFA1002

    Oxygen 0-3 lpm:  1MFA3002


    DISS Female Hand Tight:

    Oxygen 0-200 cc:  6MFA1003

    Oxygen 0-1 lpm:  4MFA1003

    Oxygen 0-3 lpm:  1MFA3003


    DISS Male:

    Oxygen 0-200 cc:  6MFA1004

    Oxygen 0-1 lpm:  4MFA1004

    Oxygen 0-3 lpm:  1MFA3004


    Ohmeda:

    Oxygen 0-200 cc:  6MFA1005

    Oxygen 0-1 lpm:  4MFA1005

    Oxygen 0-3 lpm:  1MFA3005


    Chemetron:

    Oxygen 0-200 cc:  6MFA1006

    Oxygen 0-1 lpm:  4MFA1006

    Oxygen 0-3 lpm:  1MFA3006


    Oxequip:

    Oxygen 0-200 cc:  6MFA1007

    Oxygen 0-1 lpm:  4MFA1007

    Oxygen 0-3 lpm:  1MFA3007


    Puritan-Bennett:

    Oxygen 0-200 cc:  6MFA1008

    Oxygen 0-1 lpm:  4MFA1008

    Oxygen 0-3 lpm:  1MFA3008


    Schrader:

    Oxygen 0-200 cc:  6MFA1009

    Oxygen 0-1 lpm:  4MFA1009

    Oxygen 0-3 lpm:  1MFA3009
