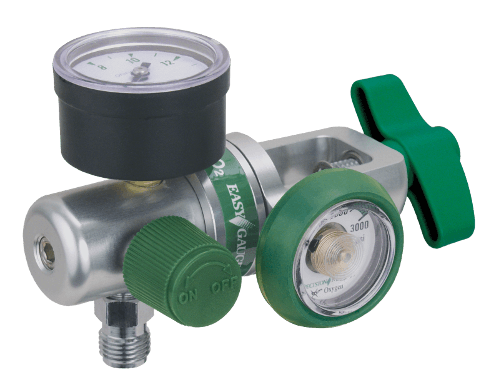

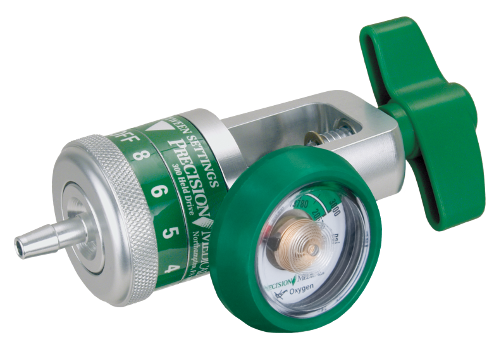

Oxygen Regulator Ratings
Flow Range: 0 to 4000 cc/min
Position Increments: Off, 31, 62, 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000
CGA Connection:
Yoke (870) Style: 168704DCL
Nut (540) Style: 165404DCL
Flow Range: 0 to 4 lpm
Position Increments: Off, 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1-1/2, 2, 3, 4
CGA Connection:
Yoke (870) Style: 168704DL
Nut (540) Style: 165404DL
Flow Range: 0 to 8 lpm
Position Increments: Off, .25, .50, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8
CGA Connection:
Yoke (870) Style: 168708D
Nut (540) Style: 165408D
Flow Range: 0 to 15 lpm
Position Increments: Off, .50, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15
CGA Connection:
Yoke (870) Style: 168715D
Nut (540) Style: 165415D
Flow Range: 0 to 25 lpm
Position Increments: Off, .25, .50, 1, 2, 3, 4, 6, 8, 10, 15, 25
CGA Connection:
Yoke (870) Style: 16872D
Nut (540) Style: 165425D
Oxygen Regulator Ratings
Flow Rate: 0 to 8 lpm
CGA Connection: Yoke Style (870)
Model Number: 168708G
Flow Rate: 0 to 15 lpm
CGA Connection: Yoke Style (870)
Model Number: 168715G
Flow Rate: 0 to 8 lpm
CGA Connection: Nut Style (540)
Model Number: 165408G
Flow Rate: 0 to 15 lpm
CGA Connection: Nut Style (540)
Model Number: 165415G

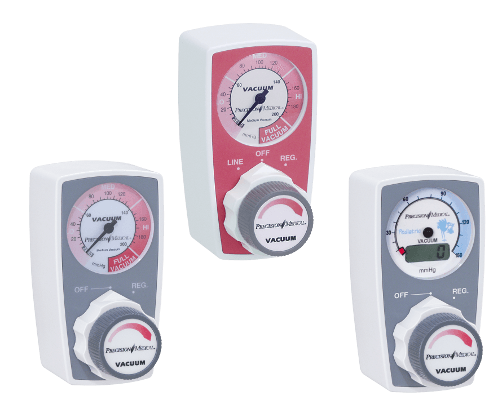

Flowmeter Ratings
Gauge Reading
PM3000/3100: 0 to 200 mmHg and "Full Vacuum"
PM3500: 0 to 150 mmHg
Vacuum Operating Range
PM3000/3100: 0 to 200 mmHg and "Full Vacuum"
PM3500: 0 to 150 mmHg (Restricted to 160mmHg max.)
Modes
PM3000/3100: Off - Reg.
PM3500: Line - Off - Reg.
Flowmeter Ratings
Gauge Reading
PM3300: 0 to 200 mmHg and "Full Vacuum"
PM3400: 0 to 150 mmHg
Vacuum Operating Range
PM3300: 0 to 200 mmHg and "Full Vacuum"
PM3400: 0 to 150 mmHg (Restricted to 160mmHg max.)
Modes: Reg. - Off - Int.

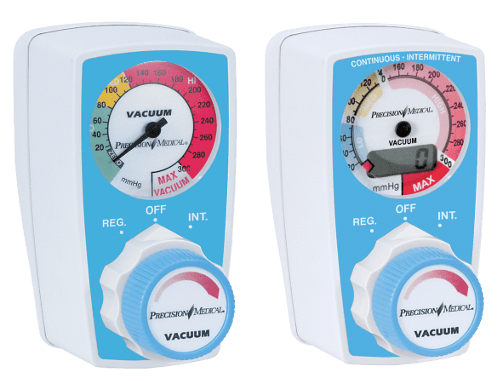

Flowmeter Ratings
Gauge Reading
PM3000/3100: 0 to 200 mmHg and "Full Vacuum"
PM3500: 0 to 150 mmHg
Vacuum Operating Range
PM3000/3100: 0 to 200 mmHg and "Full Vacuum"
PM3500: 0 to 150 mmHg (Restricted to 160mmHg max.)
Modes
PM3000/3100: Off - Reg.
PM3500: Line - Off - Reg.
Digital
Analog
