BCI OXIMETERS

Oximeters from BCI

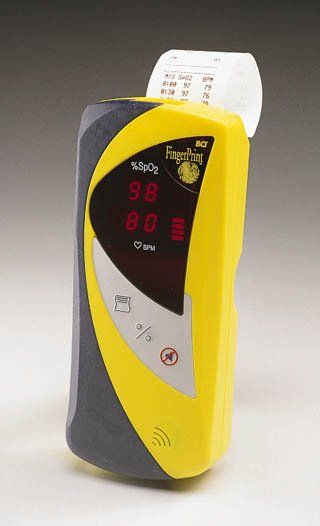

BCI Handheld FingerPrint Oximeter/Printer

The BCI FingerPrint Model 3401 is a low cost, hand-held Pulse Oximeter with an integral printer. A light-weight, highly portable device, it has easy-to-read red LEDs and provides fast, reliable spot checking and hard copy documentation of SpO2, and pulse rate for patients from neonate to adult. The built-in printer ensures easy, accurate documentation for up to 99 patient Sp02 and pulse rate readings. Print options include real time or trend date documentation.

The FingerPrint is compatible with all BCI reusable and disposable pulse oximetry sensors. It comes equipped with a power conserving auto shut-off when disconnected from patient and operates on 4 AA Alkaline batteries. An optional rubber boot to provide extra protection to the unit is available. Unit is also available in a sleep study model.
  • SPECIFICATIONS

    Dimensions

    • Size (W x H x D):  7cm x 16.7cm x 3.6cm (2.75in x 6.6in x 1.43in)
    • Weight:  369 grams (13 oz.) [with batteries]

    Power Ratings

    • Battery Life:  24 hours without printing, 14 hours continuous printing, 1 minute on
    • Power Requirements:  4 "AA&quote; Alkaline or NiCAD batteries

    Displays

    • SpO2:  LED numeric display (10.9mm / 0.43in high)
    • Pulse Rate:  LED numeric display (10.9mm / 0.43in high)
    • Pulse Strength:  Logarithmically scaled, 8-segment bar graph

    SpO2

    • Range:  0 to 99% (functional)
    • Accuracy:  ±2% at 70-99%, <69% unspecified
    • Averaging:  8-second average

    Pulse Rate

    • Range:  30 to 254 bpm
    • Accuracy:  ±2% at 30 to 254 bpm
    • Averaging:  8-second average

    Printer

    • Integrated Printer:  1-inch wide thermal printer paper, 15 characters per line
    • Printer Output:  RS232C

    Standards

    • Safety Approvals:  Certified by TUV to IEC-601-1, CE (EMC), CSA 125, UL544
    • MDD versions available

Bci oximeters

BCI Autocorr Digital Pulse Oximeter

The elegant new line of Clarity patient monitors from BCI, including the Autocorr and Autocorr Plus Oximeters, provide flexibility, reliability and ease-of-use. Whether these monitors are used as individual units or combined into systems to respond to multi-parameter monitoring requirements, the Clarity line of monitors can meet all of your needs.

The Autocorr 3304 Digital Pulse Oximeter is the latest of BCI's oximeters. The Autocorr offers Sp02, pulse rate and signal strength. Pulse strength is indicated by a logarithmically scaled 8-segment LED bar graph. The digital display is bright and extremely easy to read, the buttons are conveniently large, and the monitor itself is streamlined while being durable. Alarms are adjustable between 5-250 bpm by 1 bpm steps.
  • SPECIFICATIONS

    Dimensions

    • Size (W x H x D):  82mm x 216mm x 140mm (8.5in x 3.24in x 5.5in)
    • Weight:  850 grams (30 oz.)

    Power Ratings

    • Battery Life:  4.5 hours continuous use on full 6 hour charge
    • Battery Type:  Standard Lead-Acid
    • AC Charge Power Requirements:
    • Wall Mount:  105 to 125 VAC, 60 Hz, optional: 100 VAC, 50 Hz
    • Table Top:  230VAC 50/60Hz

    Displays

    • SpO2:  3-digit LED display (10.9mm / 0.43in high)
    • Pulse Rate:  3-digit LED display (10.9mm / 0.43 in high)
    • Pulse Strength:  Logarithmically scaled 3-segment LED bar graph

    Pulse Ratings

    • Model Number:  3304
    • Range:  30 to 254 bpm
    • Accuracy:  ±2% at 30 to 254 bpm
    • Alarm Range
    • High:  5 to 250 bpm & OFF (1 bpm steps)
    • Low:  5 to 250 bpm & OFF (1 bpm steps)

    SpO2

    • Range:  0 to 100%
    • Accuracy:  ±2% at 70 to 100%, ±3 at 50-69%
    • Alarm Range
    • High:  50 to 100% & OFF (1% steps)
    • Low  OFF & 50-99% (1% steps)

    Standards

    • Safety Approvals:  EN60601-1, EN60601-1-1, UL 544, CSA Std. C22.2 No. 125-1984
    • EMC:  EN60601-1-2
Autocorr Digital Pulse Oximeter

BCI Autocorr Plus Pulse Oximeter/ECG Monitor

Part of BCI's new line of Clarity patient monitors, the Autocorr Plus Pulse Oximeter/ECG Monitor offers flexibility and is simple to use. Whether these monitors are used as individual units or combined into systems to respond to multi-parameter monitoring requirements, the Clarity line will meet the needs of even your most challenging patients.

The Autocorr Plus Pulse Oximeter/ECG Monitor 3404 integrates digital SpO2 with 3 or 5 lead ECG and respiration, for extra flexibility. The digital display is bright and easy to read, and the buttons are conveniently large. The body of the Oximeter/ECG monitor is sleek and sturdy. Please note, it is possible to order the Autocorr Plus with an optional printer (Part Number BCI-3408) that provides data logs, interval trends and waveform printouts.
  • SPECIFICATIONS

    Dimensions

    • Size (W x H x D):  254mm x 88.9mm x 139.7mm (10in x 3.5in x 5.5in)
    • Weight:  2.27 kg (5 lbs.)

    Power Ratings

    • Battery Life:  45 minutes continuous use on full 6 hour charge
    • Battery Type:  Standard Lead-Acid
    • AC Charge Power Requirements:
    • Wall Mount:  105 to 125 VAC, 60 Hz, optional: 100 VAC, 50 Hz
    • Table Top:  230VAC 50/60Hz

    Displays

    • Display:  Electroluminescent
    • Resolution:  160 x 80 pixels
    • Waveforms:  ECG, Plethysmogram
    • Graphic Trends:  SpO2, Pulse Rate (Heart Rate),
    • Pulse Signal Strength and Respiration
    • SpO2:  3-digit LED display (14.2mm / 0.56in high)
    • Pulse Rate / Heart Rate (ECG):  3-digit LED display (10.9mm / 0.43 in high)
    • Pulse Strength:  Logarithmically scaled 10-segment LED bar graph
    • Respiration:  3-digit 10x14 pixel font (EL panel)

    Pulse Rate (SpO2 or Heart Rate (ECG)

    • Model Number:  3404
    • Range:  30 to 254 bpm
    • Accuracy:  > of ±2% or ±2 bpm
    • Alarm Range
    • High:  30 to 254 bpm & OFF (1 bpm steps)
    • Low:  30 to 254 bpm & OFF (1 bpm steps)

    SpO2

    • Range:  0 to 100%
    • Accuracy:  ±2% at 70 to 100%, ±3 at 50-69%
    • Alarm Range
    • High:  50 to 100% & OFF (1% steps)
    • Low  OFF & 50-100% (1% steps)

    ECG

    • Configuration:  3 or 5 lead
    • Lead Selection:  I, II, III, aVR, aVL, aVF, and V
    • Gain:  X1, X2, X4, X8
    • Pace Detect:  Yes
    • Pace Reject:  Yes
    • Sweep Speed:  12.5 or 25 mm/sec

    Respiration

    • Measuring Method:  Impedance Pneumography
    • Rate:  5 to 150 breaths/min
    • Accuracy:  > of ±2% or ±2 breaths/min over full range

    Printer (Optional)

    • #3408 Printer provides data log (interval) trends and waveform printouts

    Standards

    • Safety Approvals:  EN60601-1, EN60601-1-1, UL 544, CSA Std. C22.2 No. 125-1984
    • EMC:  EN60601-1-2
AUTOCORR PLUS
