NELLCOR OXIMETERS

Oximeters from Nellcor, Nonin, and Masimo

Nellcor N-20PA Handheld Pulse Oximeters

The Nellcor N-20PA Handheld Pulse Oximeters offers portable, rugged pulse oximetery, designed to endure shock, vibration and extreme temperatures.

The N-20PA model, is designed with a built-in printer, audible/visible alarms, and continuous operation. The unit display shows oxygen saturation, the pulse rate, vertical bar graph pulse amplitude indicator/battery meter, a pulse search indicator, and a low battery indicator.
  • FEATURES
    • Rugged, durable construction with protective boot
    • Long battery life: 32 to 37 hours
    • Easy-to-see day/night LED display
    • Built-in printer
    • Compatible with the full line of Nellcor adhesive and reusable sensors
    • Lightweight: Only 1.4lb (0.6kg)
  • SPECIFICATIONS

    Dimensions


    Width x Height x Length:

    N-20E:  7.6cm x 5.1cm x 19.0cm or 3.0in x 2.0in x 7.5in


    Weight:

    N-20E:  0.6 kg (1.3 lb)

    N-20PE/Pa:  0.62kg (1.4 lb)


    Power Ratings


    Power Requirements:

    6 VDC, by 4 "C" sized alkaline batteries


    Battery Life:

    N-20E:  37 hours

    N-20PE/PA:  32 hours


    Display


    • Oxygen Saturation
    • Pulse Rate
    • Vertical Bar Graph Pulse Amplitude Indicator/Battery Meter
    • Pulse Search Indicator
    • Low Batter Indicator

    Alarms


    • Audible Low Battery Pulse Search High Sat Low Sat High Rate Low Rate

    Pre-Set Alarm Limits:

    • High Sp02 Adult:  Â 100%
    • Neonate:  Â 95% Low Sp02
    • Adult:  Â 85%
    • Neonate:  Â 50%
    • High Pulse Rate Adult:  Â 170 bpm
    • Neonate:  Â 190 bpm
    • Low Pulse Rate Adult:  Â 40 bpm Neonate:Â 90 bpm

    Display Range


    SpO2:  0% to 100%

    Pulse Rate:  20 to 250 bpm


    Accuracy (% Sp02 ±1 SD)


    Adults:

        70% to 100% ± 2 digits (with D-25 sensor)

        0% to 69% Unspecified


    Neonates:

    70% to 100% ±3 digits (with N-25 sensor)

    Pulse Rate Accuracy:  20 to 250 bpm ±3 bpm


    Environmental


    Temperature:

    Storage/Shipping:

    -20°C to 55°C


    Operating:

    0°C to 55°C (instrument)

    0°C to 40°C (printer)


    Shock:

    MIL-STD-810E, method 516.4


    Vibration:

     5-35 Hz, 0.015" peak to peak

     35-500 Hz, 1g

     15 minute sweep, each axis

     Resonant frequencies, 20 minutes, each axis

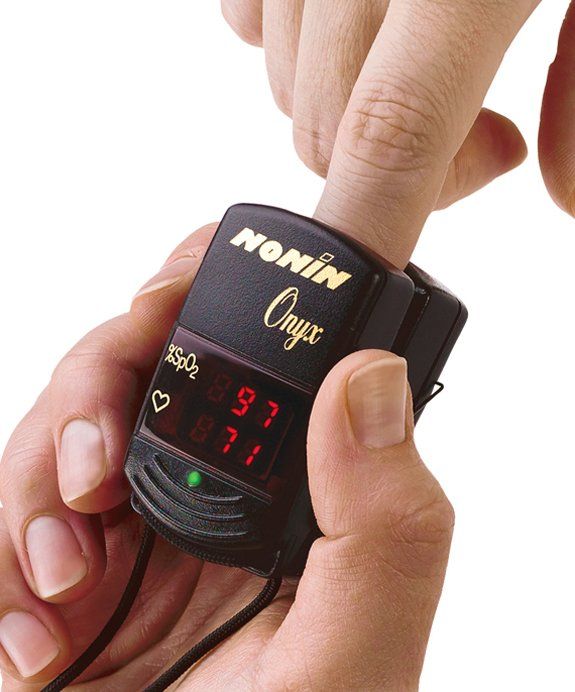

Nonin Onyx 9500

The Nonin Onyx--the world's first self-contained digital fingertip pulse oximeter--integrates the electronics and the sensor into one unit. It looks like a finger probe, but it is actually a complete pulse oximeter. When you place the Nonin Onyx 9500 on your fingertip, it will automatically turn itself on and light up a display, providing instant, real-time readings of heart-rate and blood-oxygen saturation levels. When you take the Nonin Onyx 9500 Pulse Oximeter off of your finger, it automatically turns itself off, saving the battery life. The pulse oximeter has a bright LED digital display that is easy to read.
  • FEATURES
    • The Nonin Onyx 9500 automatically turns on and lights up when you place it on your fingertip.
    • When you take the Nonin Onyx 9500 Pulse Oximeter off of your finger, it automatically turns itself off, saving the battery life.
    • The pulse oximeter has a bright LED digital display that is easy to read.
  • SPECIFICATIONS
    • Oxygen Sat. Range: 0-100 %
    • Pulse Rate Range: 18-300 BPM
    • Up to 1600 Spot-Checks On One Set Of Batteries
    • Proven Accuracy and Durability
    • Includes 9500 Pulse Oximeter, Black Lanyard Cord, Two AAA Batteries, Instruction/Service Manual

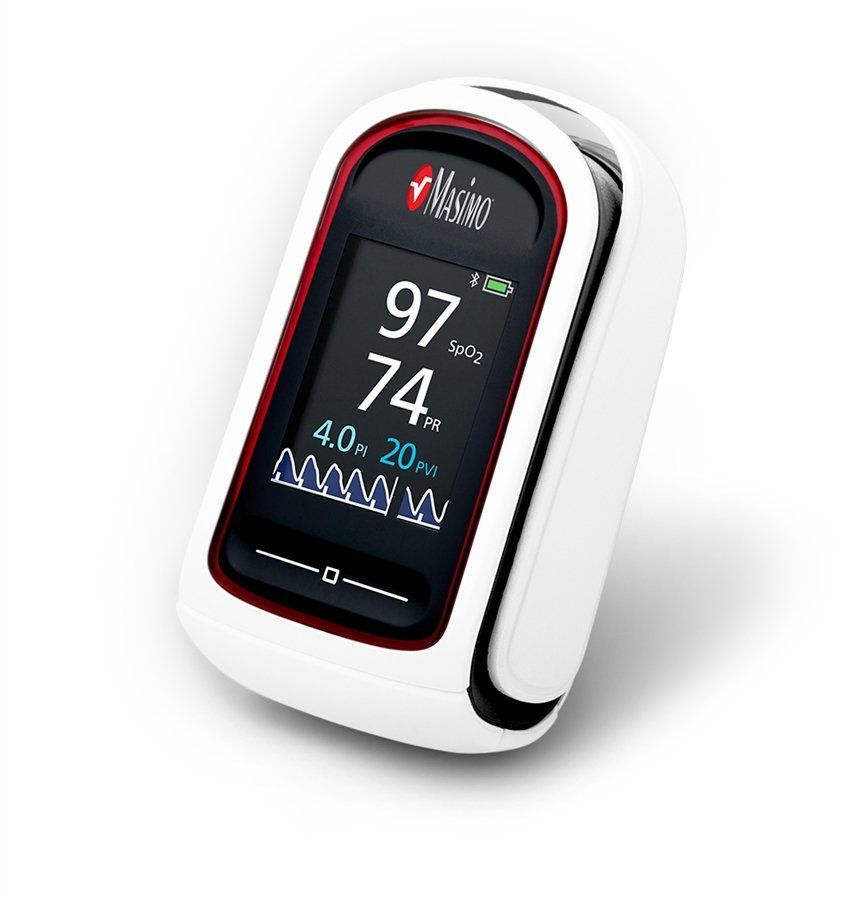

Masimo Fingerprint Oximeter

Masimo fingerprint oximeter information needed.
  • SPECIFICATIONS

    Under construction.
