ACUTRONIC INFANTVIEW

Airway
Management

We are a licensed dealer for Acutronic Medical System's InfantView, a highly dedicated device for neonatal and pediatric video-intubation and transillumination to improve patient outcome, optimize your workflow, and to reduce costs.

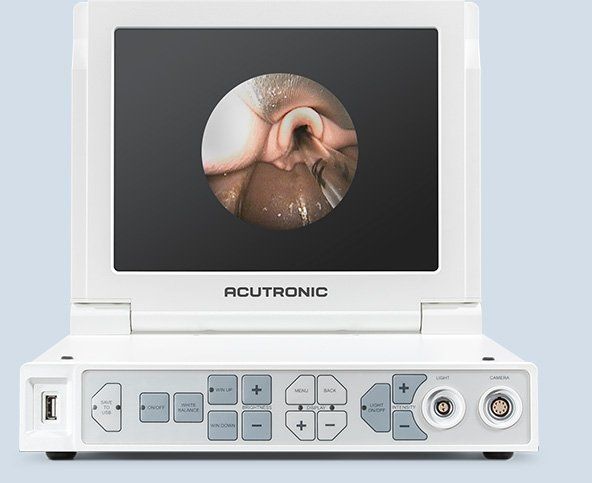

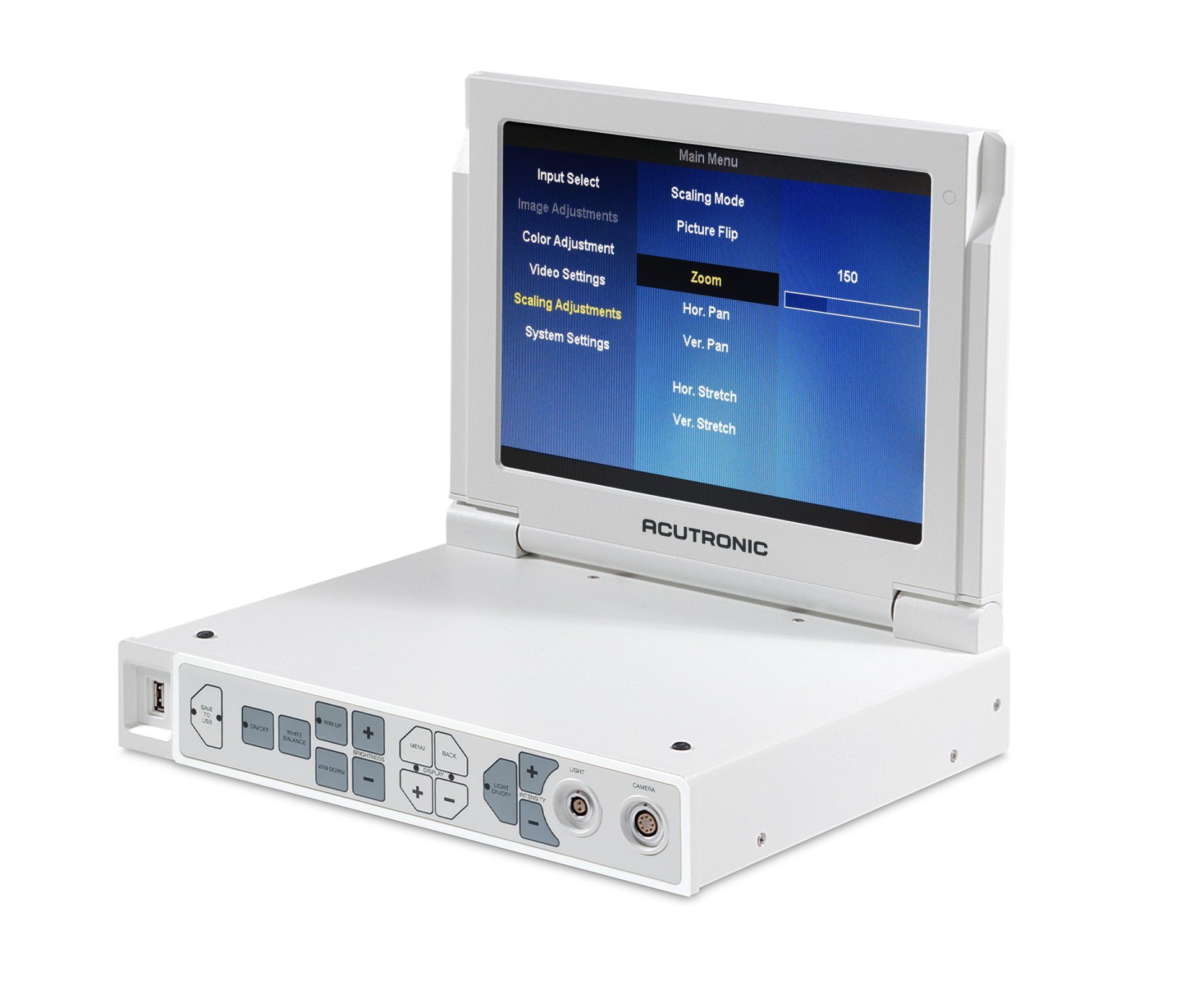

Acutronic's InfantView

Multifunctional
The InfantView covers multiple related medical procedures during resuscitation, intubation and ventilation. From delivery room to NICU, the InfantView offers the best intubation and transillumination technologies in a single device.

The InfantView is ideally suited for operating rooms and training sessions with its large screen size and the option of displaying the image on external monitors.

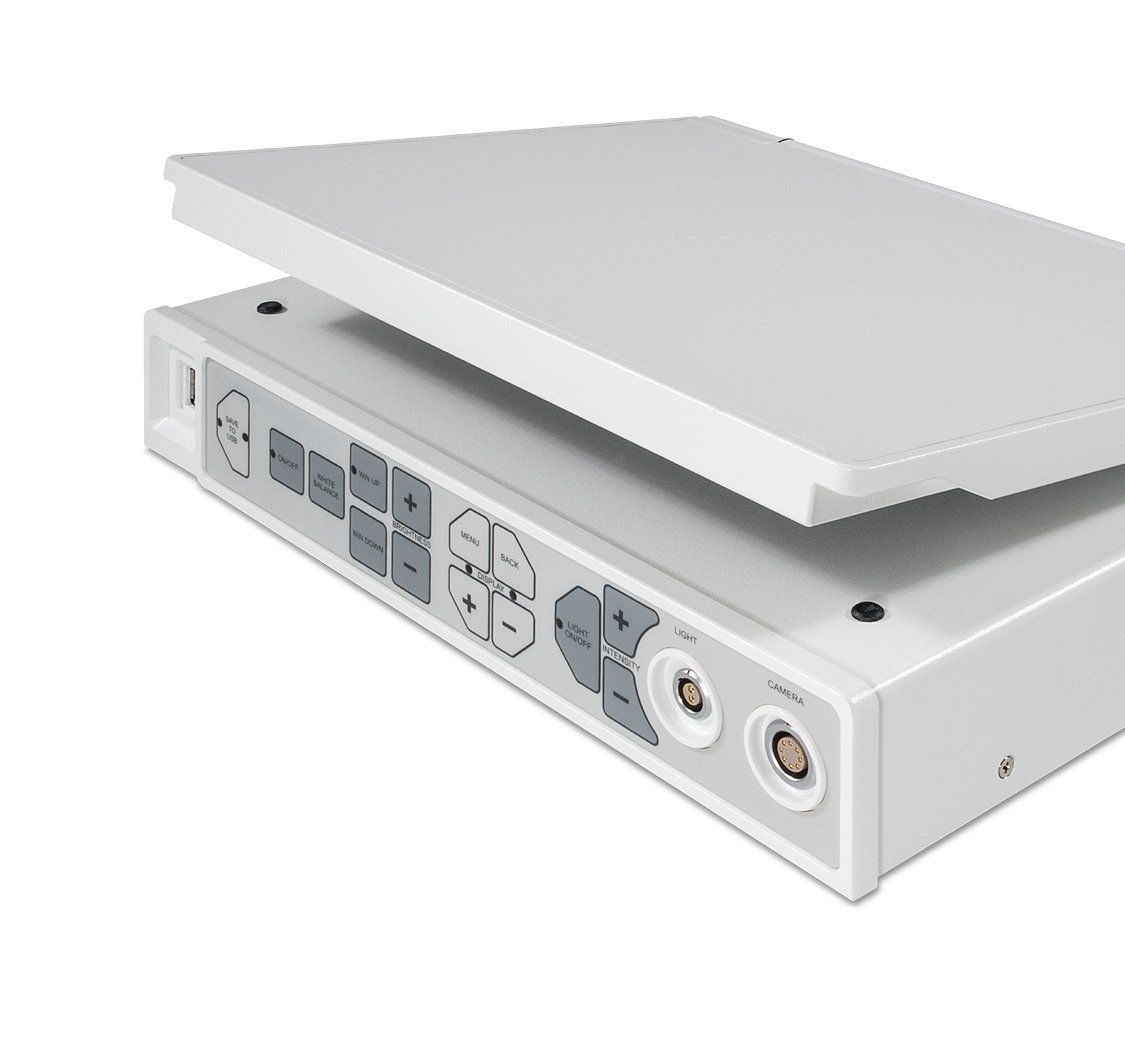

Designed with Mobility in Mind
Thanks to its smart, compact design, the InfantView allows easy access at all times and is swiftly ready at different locations.

Baby Safety is Top Priority
Keeping babies safe and protected is the starting point of all our thoughts – this is realized with high definition visualization and dedicated, autoclavable blades made from medical steel for safe reprocessing.
Download Brochure

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Innovative Technology

Thanks to its universal video and light sockets, the InfantView offers the option of continuous innovation. New accessories that may be required in the future can be easily added to the existing system.

Product Accessories

  • VisionHandle
  • EndoCamera Head
  • VeinFinder
  • EndoTV Coupler
  • ThoraxShine
  • EndoLight Source
  • LaryngoBlade

Technical Specifications

  • ControlUnit

    General

    Power supply 100-240V AC | 50-60Hz

    Power consumption max 45W

    Keypad with 14 buttons

    3.9kg | (WxDxH) 320 x 250 x 85mm closed / 290mm open

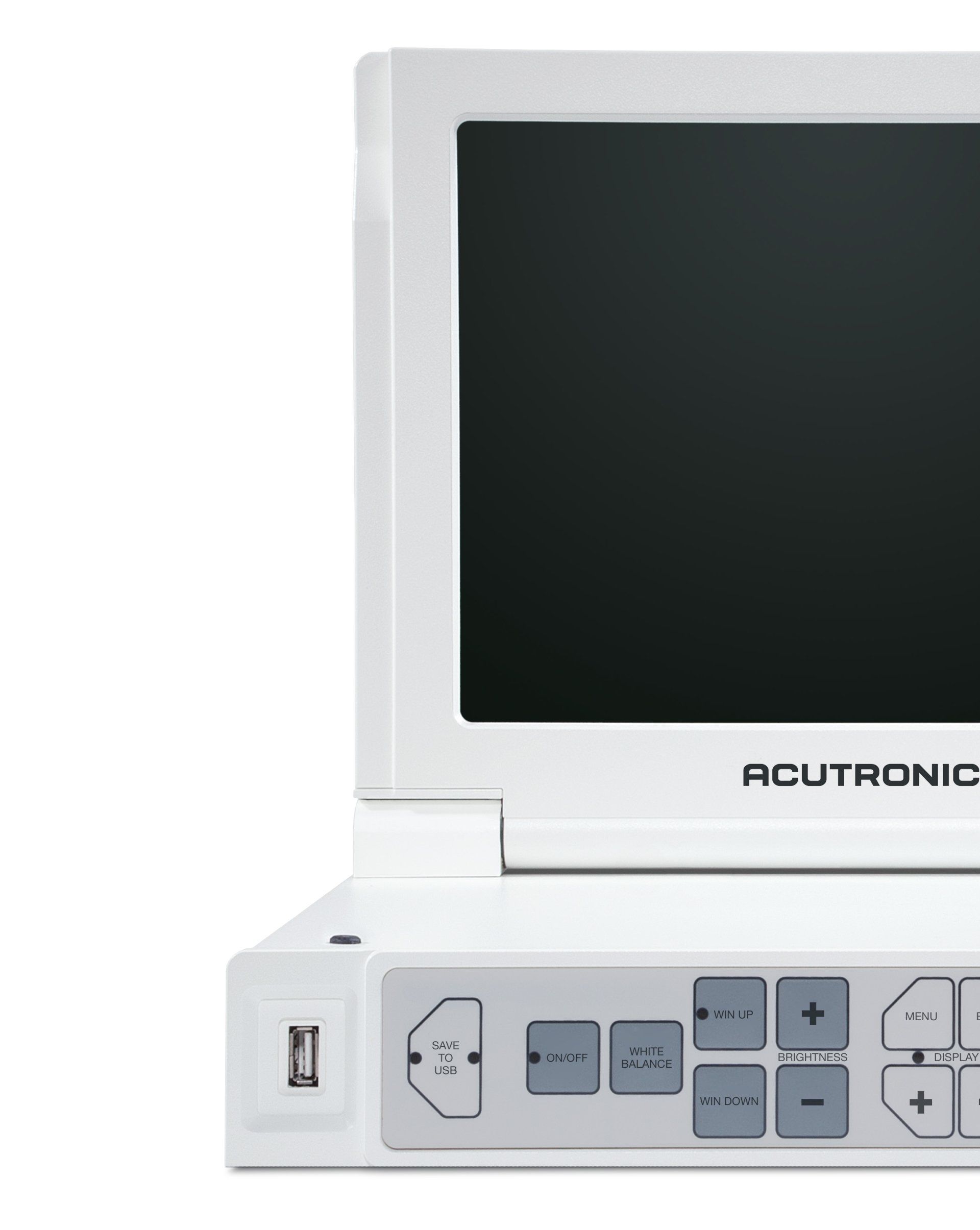

    Display

    Type: SVGA TFT LCD

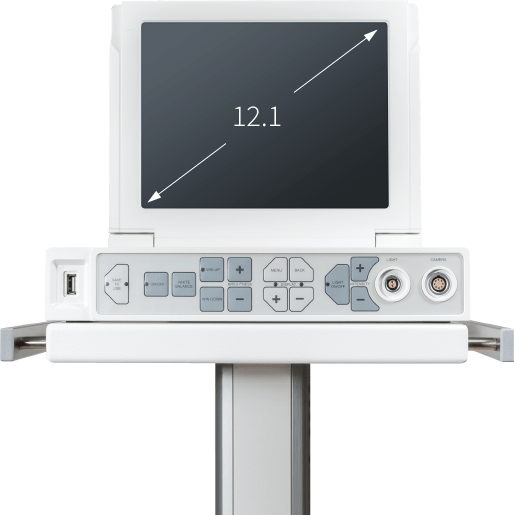

    Diagonal screen size 12.1” (307.5mm)

    Pixel format (H x V) 800 x 600px


    Control Functions

    Light: +/- Intensity regulation, separate light On/Off

    Image: +/- Brightness regulation, White Balance, WinUp/Down

    Menu for advanced image control functions

    1-Touch save to USB

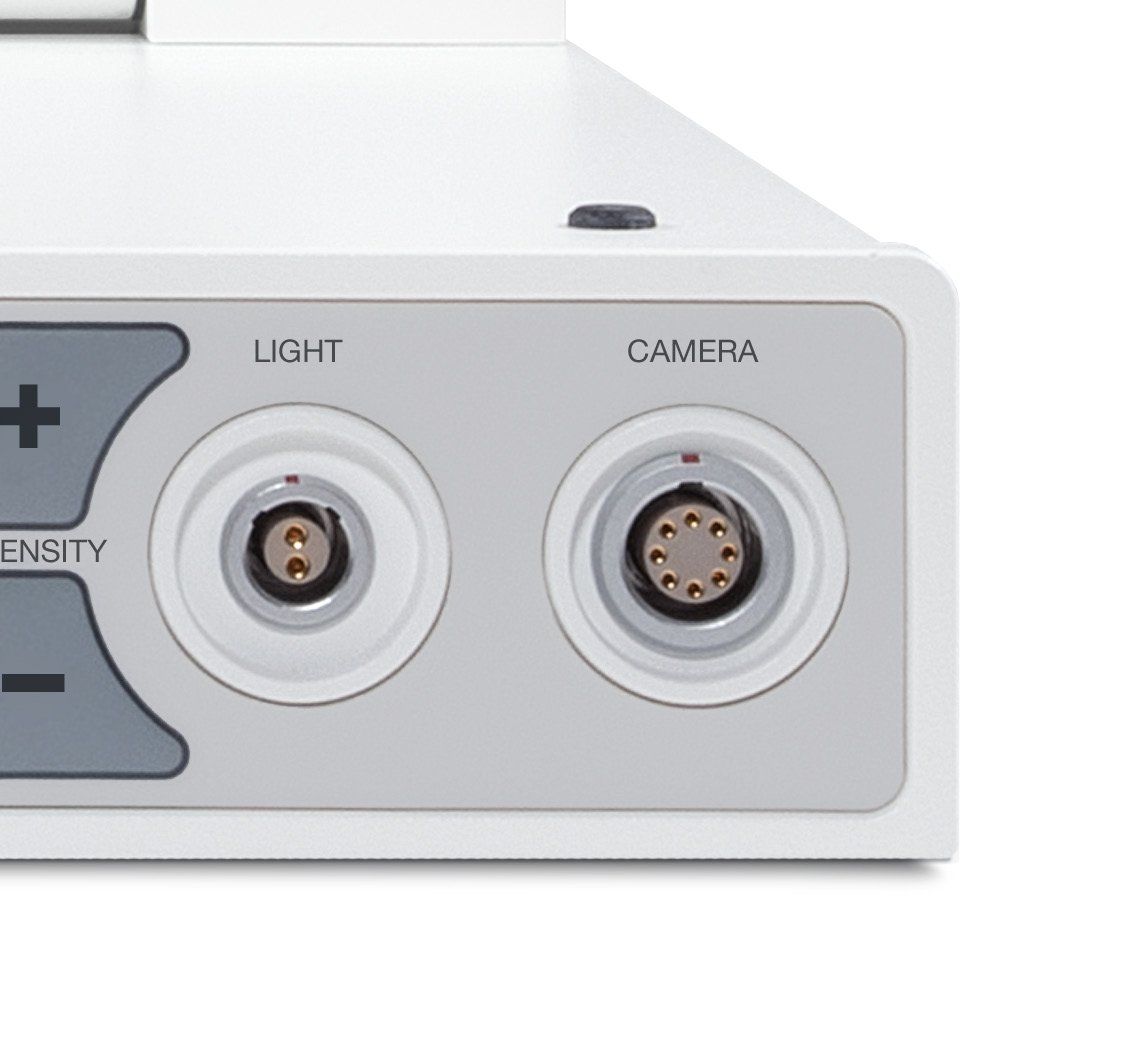

    Input and Output Ports

    1 Light socket

    1 Camera socket

    1 USB output

    2 S-Video outputs

  • VisionHandle
    • High resolution CCD Camera and internal LED
    • InfantView mount for LaryngoBlade
    • 460g | Head (Ø x L) 31.4 x 133.4mm | Cable 3m
  • EndoCamera Head
    • High resolution CCD Camera
    • C-Mount for EndoTV Coupler
    • 330g | Head (Ø x L) 35.6 x 88mm | Cable 3m

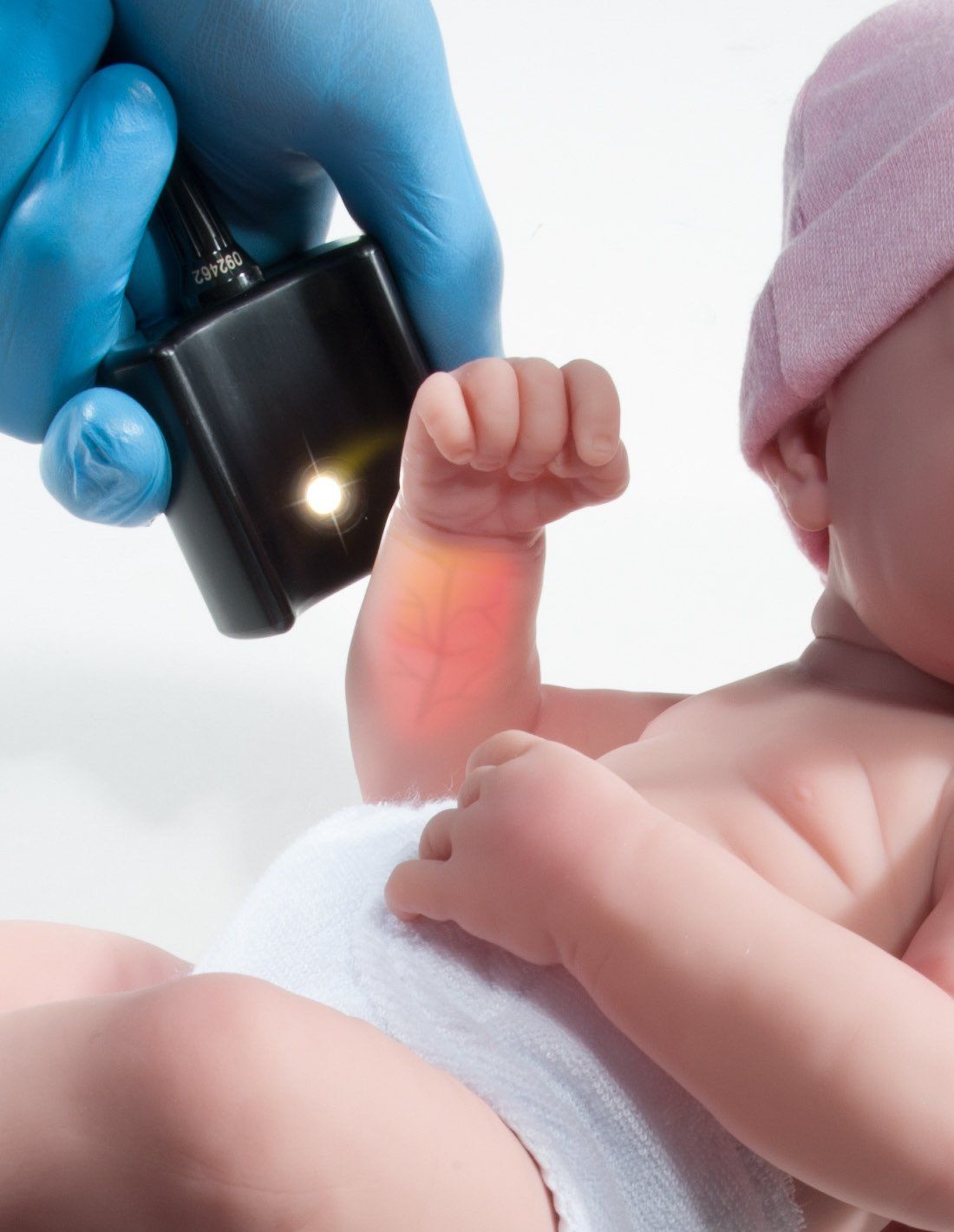

  • VeinFinder
    • 90° lateral light output
    • LED white light for transillumination
    • 200g | Head (LxBxT) 50 x 30.6 x 50mm | Cable 3m
  • EndoTV Coupler
    • Focus ring | f=23
    • Fits to all DIN 58105 eyepieces | 2-pin lock mechanism
    • 85g | (Ø x L) 45.5 x 42.5mm

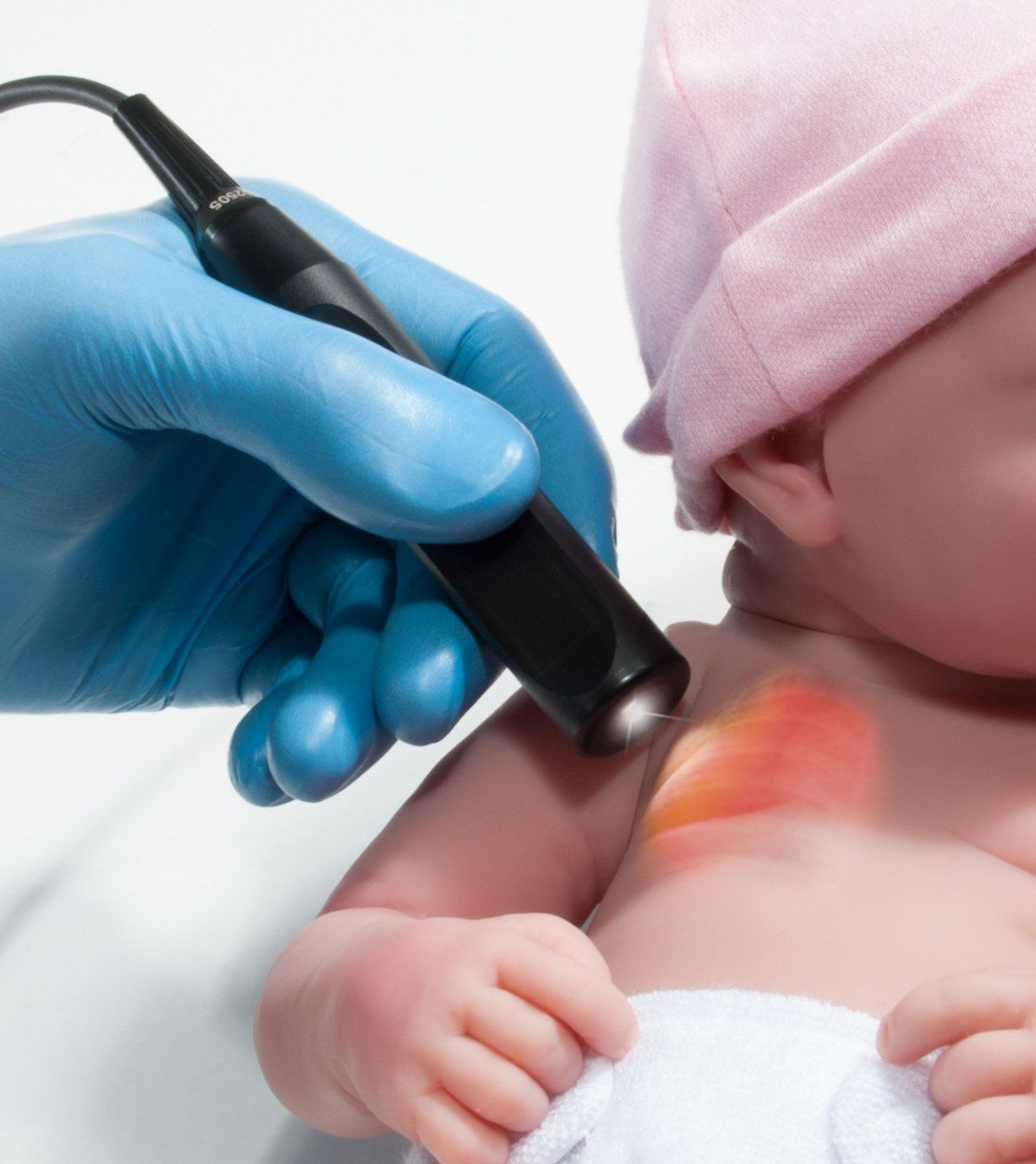

  • ThoraxShine
    • 0° frontal light output
    • LED white light for transillumination
    • 150g | Head (Ø x L) 20 x 100mm | Cable 3m
  • EndoLight Source
    • High-power LED light
    • Fits to all ACM light connectors with Wolf adapter
    • 150g | Head (Ø x L) 11.5 x 40.1mm | Cable 3m

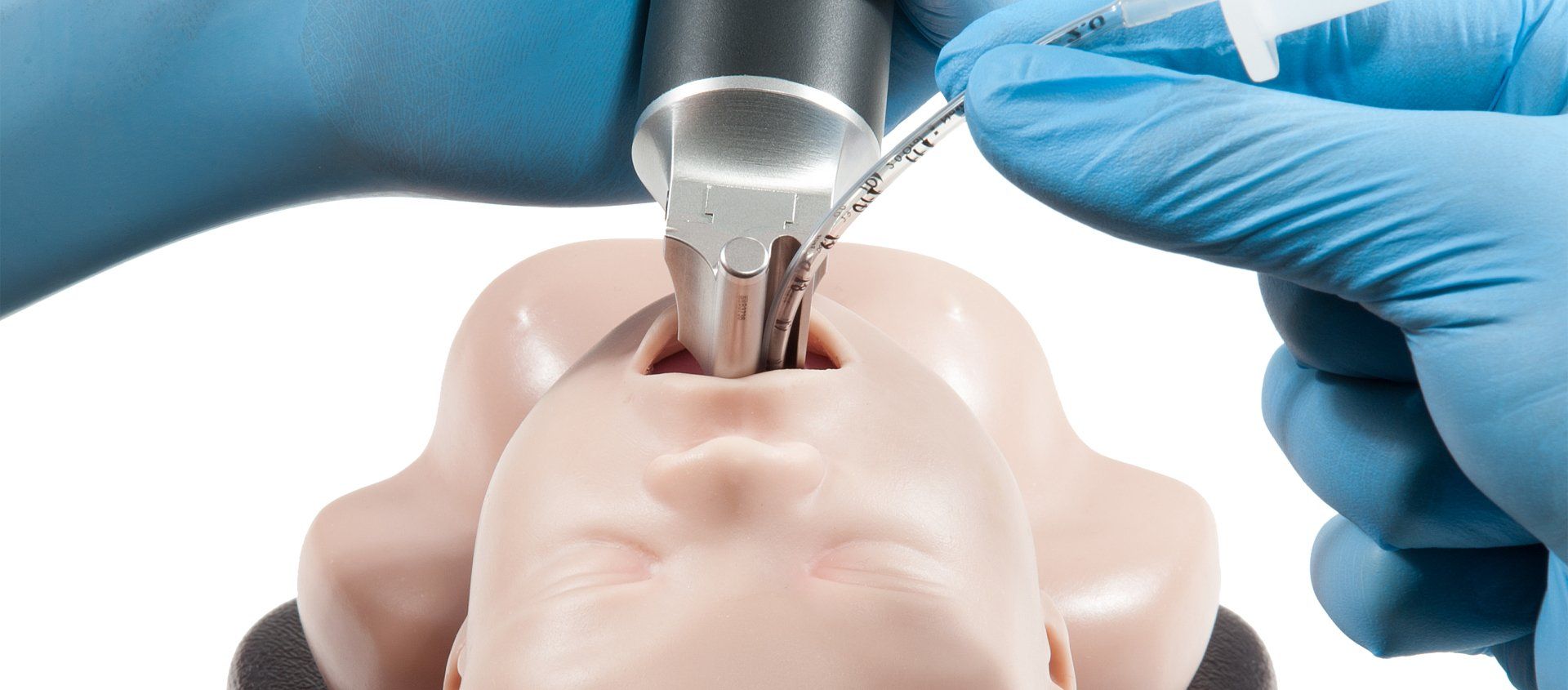

  • LaryngoBlade

    One-piece medical stainless steel

    Rod lens optics and fibre optics

    InfantView mount for VisionHandle

    • Mac Style 1: 57g | working length 72mm

    • Miller Style 0: 45g | working length 52mm

    • Miller Style 00: 43g | working length 44mm
